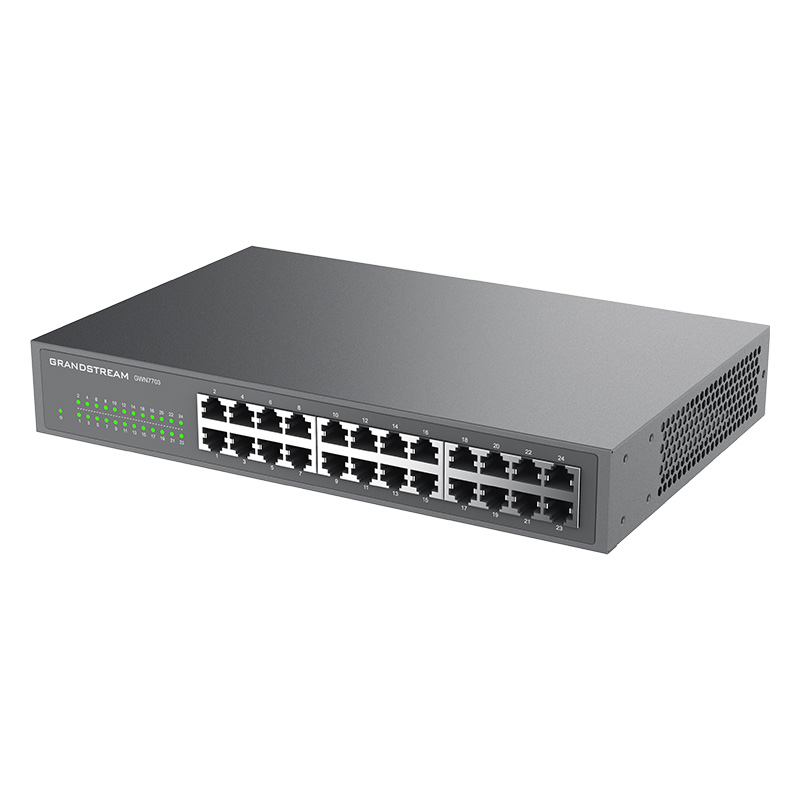

Grandstream GWN7703 24 Port Gigabit Unmanaged Network Switch
24 Port Gigabit Unmanaged Network Switch
Grandstream GWN7703 24 Port Gigabit Unmanaged Network Switch.
The GWN7700 series are unmanaged network switches that provide a quick
and cost-effective way to add high-speed Gigabit connectivity to home
offices and small/medium businesses. It requires no configuration or
installation, offers a desktop and wall-mountable design, and provides
auto MDI/MDIX to eliminate the need for crossover cables. Each port
supports auto-negotiation to allow the GWN7700 series to recognize the
link speed of any 10/100/1000Mbps network device and intelligently
adjust for compatibility and optimal performance. The PoE
(Power-over-Ethernet) models provide ports with IEEE 802.3af/at
compliant, smart dynamic PoE output to power IP phones, IP cameras,
Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700
series are the ideal unmanaged network switches for home offices and
small-to medium businesses.Features
- 24 Gigabit RJ45 ports
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed
- Auto MDI/MDIX crossover for all ports
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
| Details | |
|---|---|
| Manufacturer's Code | GWN7703 |
| Gigabit Ports | 24 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Feature | 16 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity - Green, Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 48Gbps |
| Jumbo Frame | 10KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, Half duplex backpressure |
| Power Adapter | Internal 100-240V AC, 50/60Hz, 18W |
| Max System Power Consumption | 13W@220V/50Hz |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm; Package: 366 x 211 x 53mm |
| Weight | Unit: 1.35KG, Entire Package: 1.95KG |
| Compliance | FCC, CE, RCM, IC, UKCA |
Specifications
| Generic | |
|---|---|
| Brand - Networking | Grandstream |
| Network Switch | |
|---|---|
| Switching Capacity | 48Gbps |
| PoE Support | None |
| 2.5G Ethernet Ports | 0 |
| 10G Ethernet Ports | 0 |
| SFP+ Ports | 0 |
| Gigabit Ethernet Ports | 24 |
| Enclousure | Metal | Rack Mountable |
